A tetrahedron of 30 mm side, is resting with one of its edges on HP. The edge on which it rests is inclined at 45° to VP and a face containing that edge is inclined at 30° to HP. Draw the projections of solid.

 Projection of Solid

Question: A tetrahedron of 30 mm side, is resting with one of its edges on HP. The edge on which it rests is inclined at 45° to VP and a face containing that edge is inclined at 30° to HP. Draw the projections of solid.

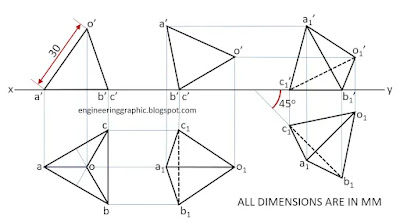

Solution:

Similar Questions:

1. A square pyramid, base 40 mm side, axis 50 mm long is freely suspended from one of the corners of its base. Draw the projections, when the axis as a vertical plane makes an angle of 40° with the V.P. and assuming the apex near to V.P.

2. A cone, a diameter of the base of 40 mm and a height of 65 mm is resting on one of its generators on the HP. Draw a projection of the cone when the plane containing that generator and axis of the cone makes an angle of 30° with the VP and the apex is nearer to the observer.
